High-Contrast Visibility MINI LIGHT BAR - MBLX-144-A/C-DS
High-Contrast Visibility MINI LIGHT BAR - MBLX-144-A/C-DS
Couldn't load pickup availability

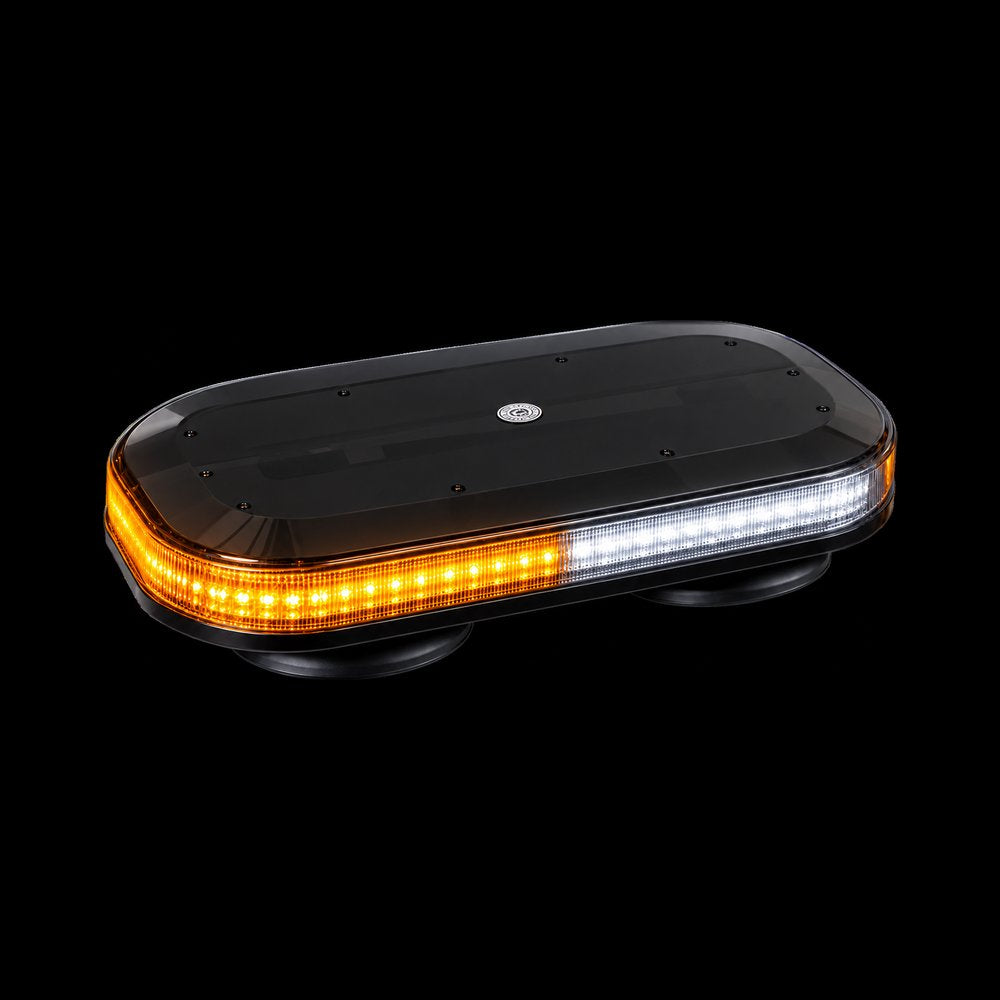

The Lumastrobe MBLX-144-A/C-DS Mini LED Lightbar features a distinctive dark smoked lens designed to deliver a more vivid, high-contrast warning signal, particularly noticeable in daylight conditions. The darker lens provides a striking contrast against the illuminated LEDs, helping the amber and clear signals stand out with greater visual definition.
With 26 selectable flash and steady operating modes, this versatile lightbar offers combination Amber/Clear signaling or independent Amber-only and Clear-only operation. Its low-profile design, powerful LED configuration, and magnetic mounting system make it an excellent choice for vehicle warning and safety applications.
PRODUCT SPECIFICATIONS
| Model | MBLX-144-A/C-DS |
| Operating Voltage | 12–24V DC |
| LED Configuration | 72 × 1.5W LEDs (Dual: 144 × 1.5W LEDs) |
| Lens | Dark smoked UV polycarbonate |
| Signal Colors | Amber / Clear (White) |
| Operating Modes | 26 flash and steady modes |
| Color Selection | Combination Amber/Clear, Amber only, or Clear only |
| Mounting | Magnetic mounting, aluminum base |
| Electrical Connection | Cigarette lighter plug / wired operation |
| Waterproof Rating | IP67 / IP69K |
| Operating Temperature | -30°C to +60°C |
DIMENSIONS
| Length | 14.3" (363 mm) |
| Width | 6.7" (171 mm) |
| Lightbar Height | 1.5" (37 mm) |
| Overall Height with Mounts | 2.2" (55 mm) |
CERTIFICATIONS AND COMPLIANCE
CE, ECE R10, ECE R65 TA2, SAE J845 Class 1, CA T13 Class B, ICAO/CAP168, and CISPR 25 Class 3.
Certification applicability may vary by lens color and configuration; the supplier specifications identify certain approvals for specific lens combinations.
